Twin Communications of America, Inc. - Press Release

OCTOBER 12, 2004
Twincommunications of America Inc.
Phone: (408) 573-0520
Fax: (408) 894-8116
Email: info@twincom.net

For immediate release

Twin Communications of America introduces Twincommunicator :

PDA-Based Instrument with dual role of

I2C BUS Controller and Video Signal Generator

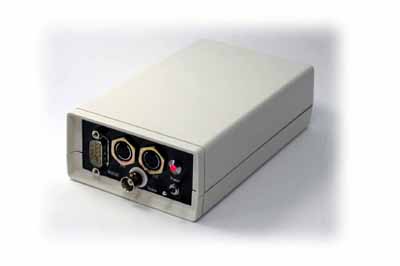

Twincommunicator


SAN JOSE, CA, OCTOBER 18, 2004 - Twin Communications of America (Nobuharu Hiruma, President and CEO) announced today that it has released Twincommunicator which is a unique and compact BUS controller that attaches to a Palm(TM) PDA. Twincommunicator can run continuously for over 8 hours on 4 AA batteries. The small and lightweight Twincommunicator is a highly functional BUS controller that performs well as both an I2C BUS monitor and a video signal generator.

Twincommunicator is design with portability in mind. It is battery powered and driven by the ease of use of Palm user interface. Twincommunicator can be used anytime, anywhere.

I2C BUS is a well known internal BUS that is commonly used in modern digital products, e.g. TVs, home appliances, etc. Twincommunicator can play a significant role in design and development of such products.

Furthermore, Twincommunicator has a built-in video signal generator. This allows TV adjustments and repairs to be done with ease using the same Twincommunicator.



Main Features

1. Easy and intuitive user interface

It has an easy and intuitive user interface utilizing touch panel and high density LCD panel. This results in drastic improvements in design, efficiency during tests, and reductions of operational mistakes. It is as simple as tapping icons and buttons on the screen.

2. Portable and can be used anywhere

As it is battery operated, it is modular and can be used anywhere. With 4 AA batteries, it can run continuously for over 8 hours when video signals are generated. It can be used for field tests, services, and onsite demonstration at customer homes even when AC power source is not available.

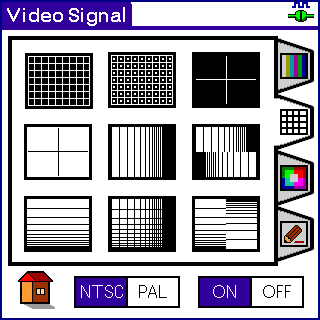

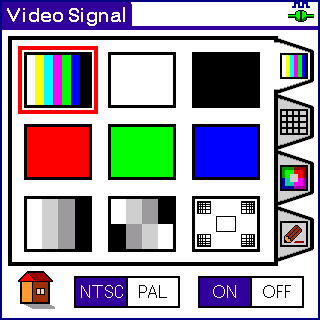

3. Built-in 27 video patterns

It has built-in 27 common video patterns in its memory. Since it has the patterns internally, the display speed is fast (1-3 seconds).

4. Creating original video patterns

You can create your own video patterns and store them in the PDA's external storage card. Creating original video patterns is very easy. You only need to create bitmap files in specified size and store them in the specified folder.
This feature allows you to display any kind of video patterns such as pictures taken by a digital camera.

5. Supports both NTSC and PAL

It generates both NTSC and PAL video signals.

6. Works as I2C BUS monitor and video signal generator at the same time

The I2C BUS monitoring function and the video signal generating function work independently. This dual functionality allows you to control I2C BUS and generate video signals at the same time.

7. Compatible with PC

Since it has a general purpose serial interface, it can be used with any PC equipped with a serial port. The application for Windows 2000/XP is also provided.

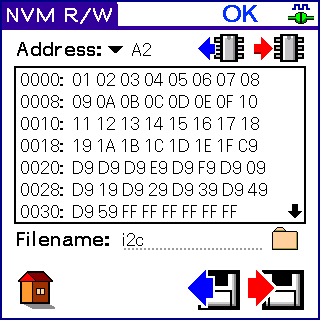

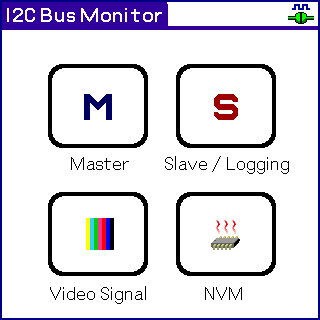

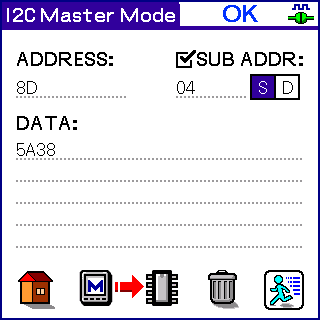

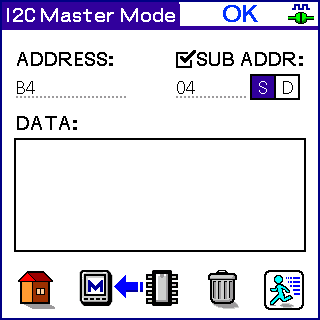

Screenshot



Basic Specifications

Input/Output Terminal

AC power source input
I2C BUS connector
General purpose I/O Port
Composite video signal output
RS232C serial port

Power Source

AC power source 100-240V 50/60Hz (included)
4 AA alkaline batteries (not included)
4 AA rechargeable nickel-metal hydride batteries (not included)

Estimated battery life

Approx. 8 hours
(with 4 AA rechargeable nickel-metal hydride batteries)

Size (W x H x D)

92mm x 45mm x 157mm

Weight

Approx. 350g with 4 AA batteries

Supplied parts list

BNC video cable
BNC/Pin plug conversion adapter
HotSync cable for Sony CLIE
Serial cable for PC
General purpose I/O cable (8pin Mini-DIN)
I2C BUS cable (5pin Mini-DIN)
AC power source 100-240V 50/60Hz
CD (software, instruction manual)

*Twincommunicator is a trademark of Twin Communications of America, Inc.
*Windows and Windows 2000/XP are registered trademarks of Microsoft Corporation.
*Palm is a trademark of PalmSource, Inc.
*I2C BUS is a trademark of Philips.
*CLIE is a trademark of Sony.
*All other products and brand names may be trademarks or registered trademarks of their respective owners.



About Twin Communications of America

Twin Communications of America, a privately held company based in San Jose, California designs and develops cost-effective software and hardware solutions for the mobile device markets.

http://www.twincom.net



Contact

Twin Communications of America, Inc.
http://www.twincom.net
E-mail : info@twincom.net

2010 North First Street, Suite 404
San Jose, California 95131
Phone: 408-573-0520 / Fax: 408-894-8116

Distributor in Japan

Free Lines
http://www.freelines.co.jp
E-mail : sales@freelines.co.jp

Kanai Daiichi Building 3F
1-1-10 Akasaka Komoro city
Nagano Japan 384-0011
Phone: 0267-26-3050 / Fax : 0267-26-3051

Distributor in USA

Beans International Corporation (BIC)
http://www.beans-intl.com/
E-mail : info@beans-intl.com

975 Mabury Road,
San Jose, California 95133
Phone: 408-279-5559 / Fax: 408-279-5552
